Specifications
Please reference the specification guide below to help you select the correct solution for your needs.
| MODEL NUMBER |
2000 SERIES |
3000 SERIES |
4000 SERIES |
6000 SERIES |
| FUEL TYPE |
ELECTRIC |
ELECTRIC |
ELECTRIC |
ELECTRIC |

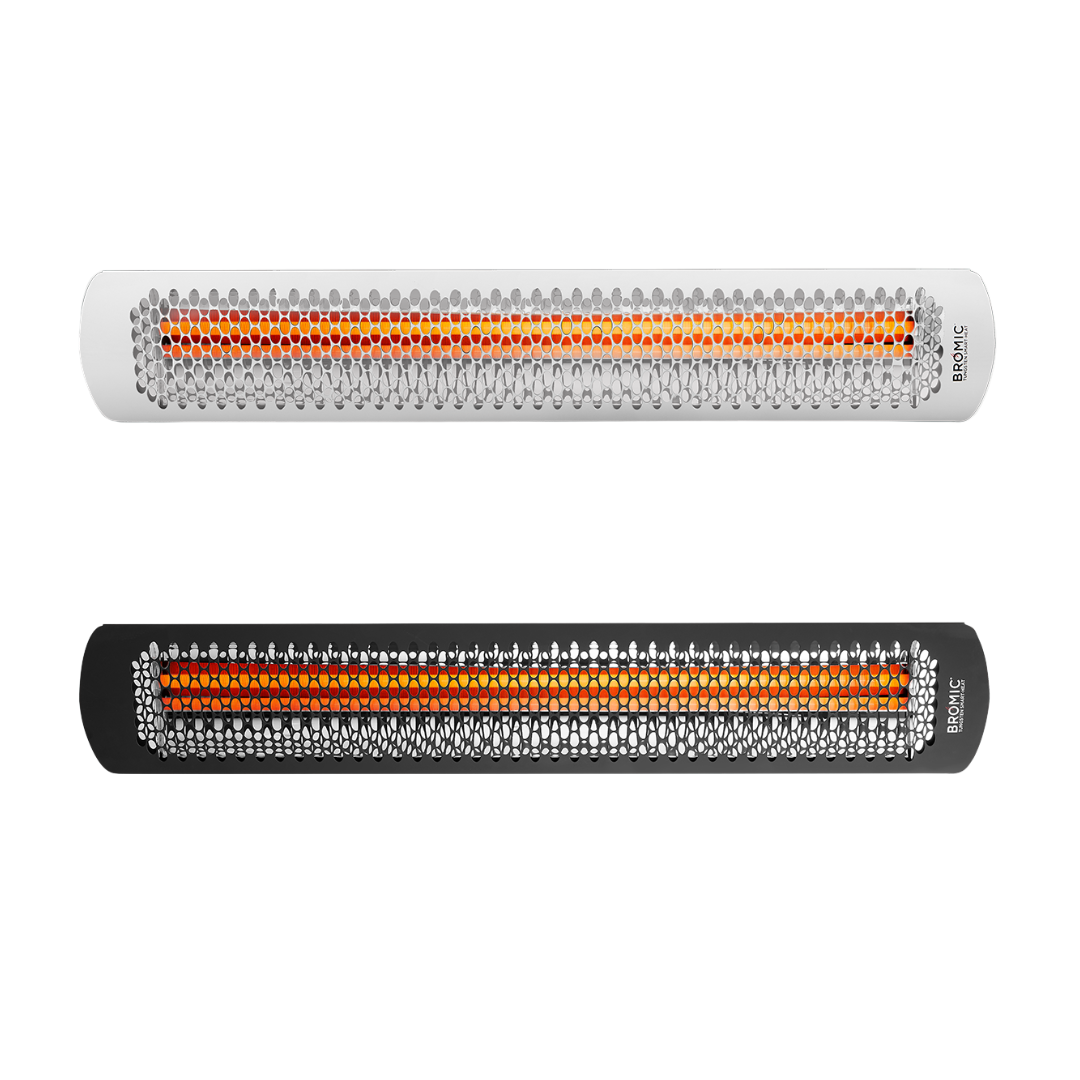

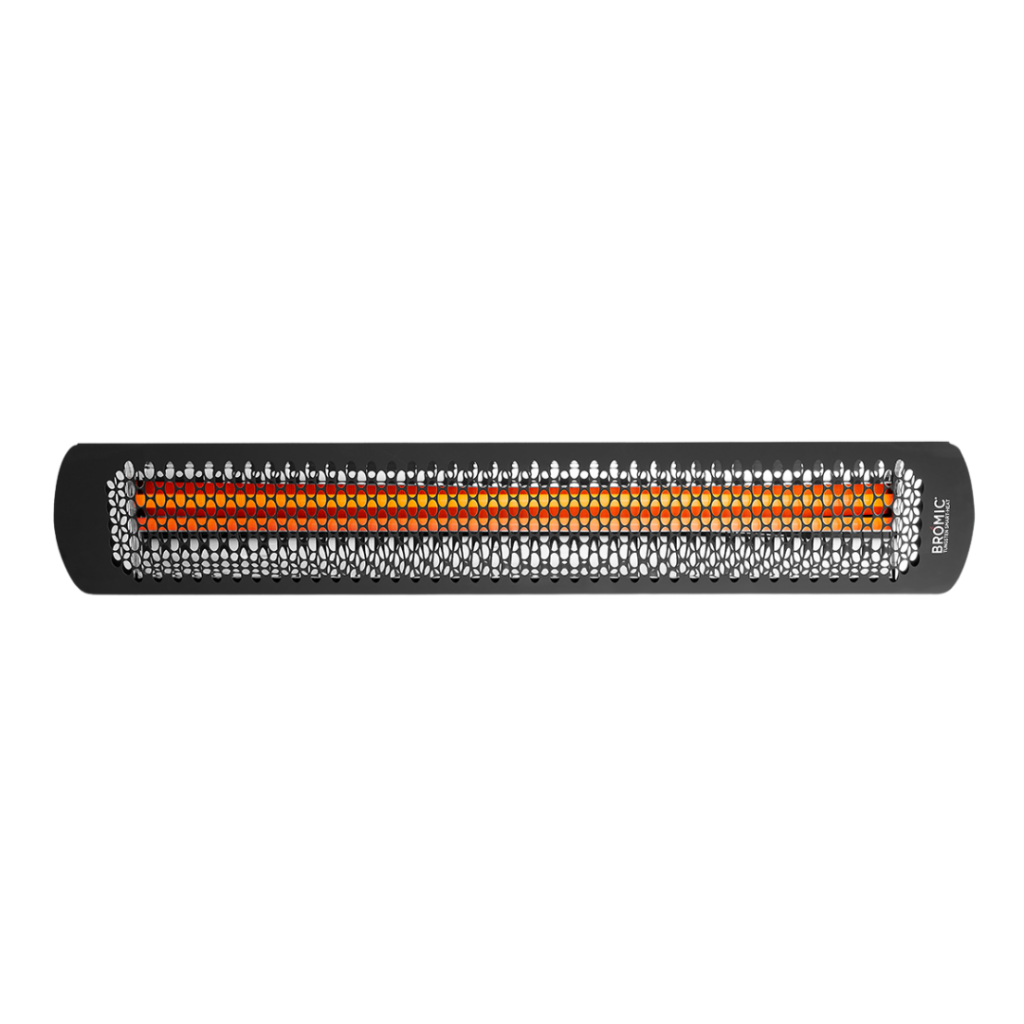

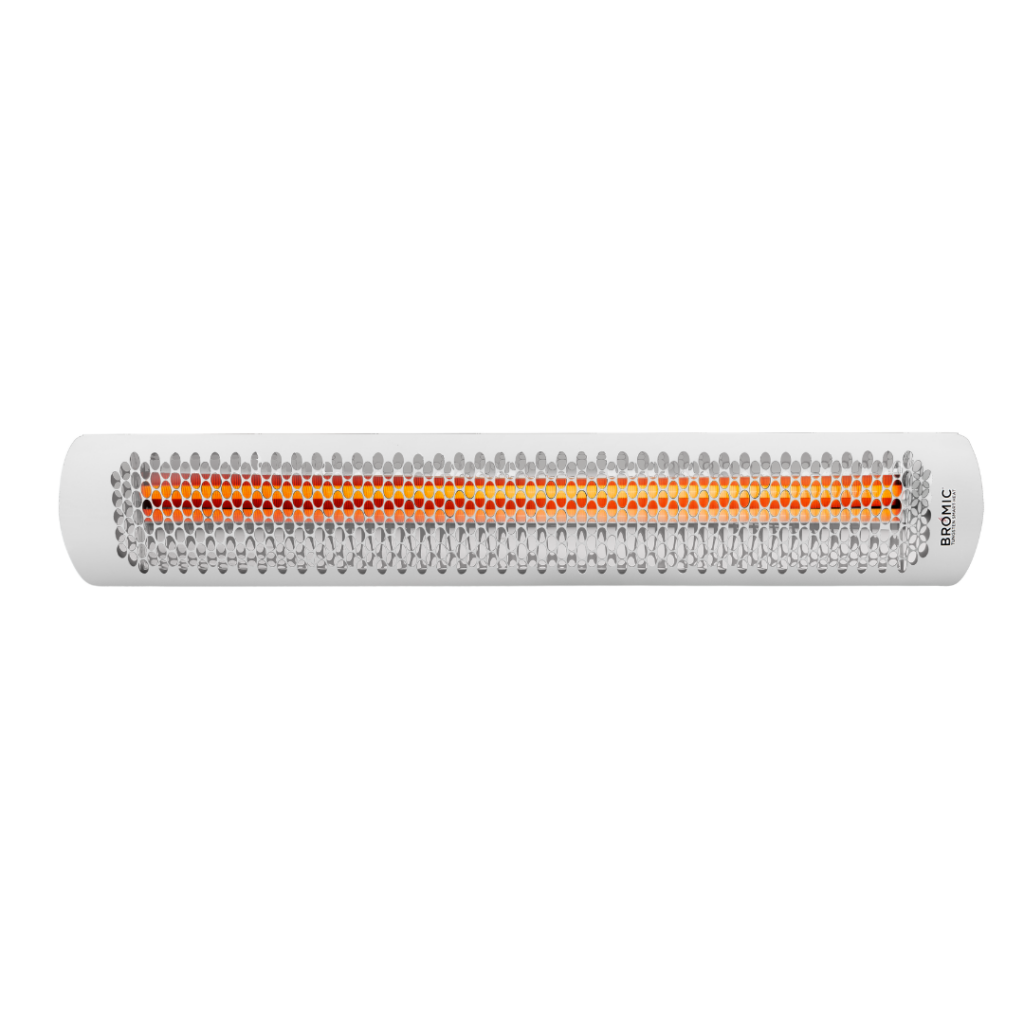

| COLOUR |
BLACK |
BLACK |
BLACK | WHITE |
BLACK | WHITE |
| HEAT AREA |
6m2 |
9m2 |
12m2 |
15m2 |
| RATED CURRENT ** |
240V/8.3A
277V/7.22A |
240V/12.5A
277V/10.83A |
240V/16.6A
277V/14.44A |
240V/25A
277V/21.66A |
| MINIMUM FLOOR CLEARANCE |
WALL 1800mm
CEILING 2400mm |
WALL 1800mm
CEILING 2400mm |
WALL 1800mm
CEILING 2400mm |
WALL 1800mm
CEILING 2400mm |
| CONTROL OPTIONS |
| ON | OFF |
✓ |
✓ |
✓ |
✓ |
| DIMMER REMOTE |
✓ |
✓ |
✓ |
✓ |
| MASTER REMOTE * |
✓ |
✓ |
✓ |
✓ |
* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 30m of heaters.
** Available in varying voltages: 240V and 277V
Downloads
Installation
Installation must be carried out by a licensed and authorised technician in accordance with local electrical codes. Please refer to our clearance requirements and consult the installation manual for further details.
Downloads
BIM Files
To download BIM files, fill out the form below:
FAQs
How is the heater controlled?

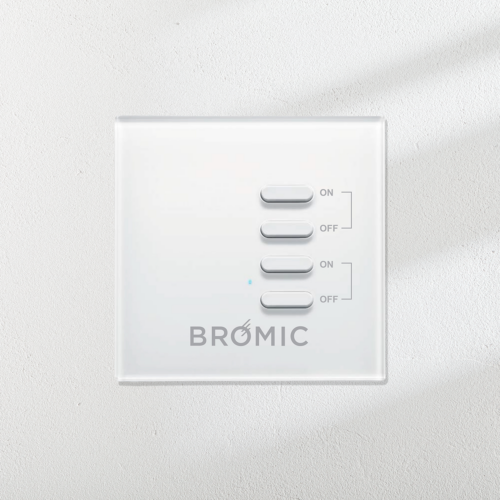

The heater can be either hard-wired or controlled with our Bromic Smart-Heat On/Off or Dimmer controls.

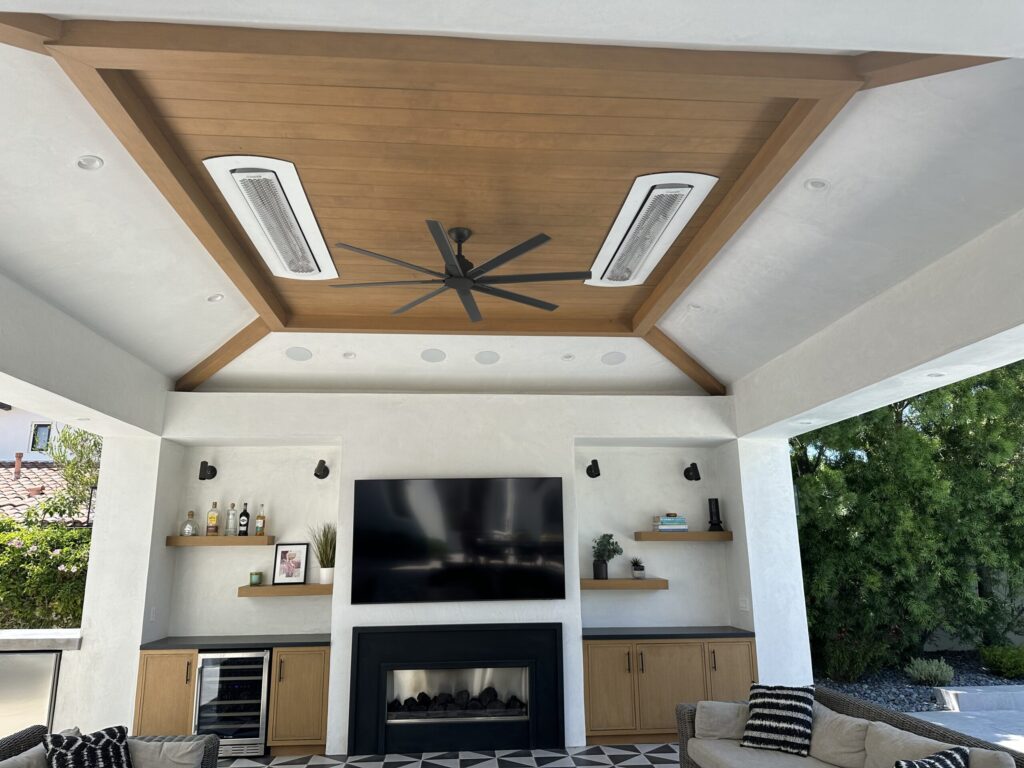

What clearance do we need from adjacent ceiling fans?
The heaters require a 900mm minimum side clearance from combustibles.
Does the heater come with ceiling brackets?
Yes. It comes with two brackets that can be used to secure the heater to either a wall or ceiling. We also offer a ceiling recesses kit for a more flush-mounted aesthetic.
Are the heaters adjustable in temperature and output?
The 4000 and 6000W versions of the Tungsten Electric come with two heating elements, which can be controlled separately to adjust the heat output as required.
Are the heaters waterproof?
The Tungsten Electric series has a IPX4 water ingress protection rating. Although our heaters are made from premium materials and engineered for longevity, we recommend that they are best mounted under cover and not directly exposed to rain, snow and salt mist to ensure they maintain their aesthetic appeal.
